PRECISION SPATIAL AUDIO CAPTURE
Spatial Mic lets you focus on recording immersive audio for VR, ATMOS, spatial music, concert recording, live broadcasts and much more. Want to use it in traditional stereo session? No Problem – the included software makes it easy to decode to stereo and aim virtual mics around the soundfield. No need for expensive multi-microphone & preamp setups – just plug-in and record with either Dante audio networking or USB/ADAT models.
Future Proof Immersive Production
Record audio for evolving formats in VR/AR and leverage Dante audio networking to create 6 Degree Of Freedom experiences with multiple Spatial Mics.
Portability Redefined
Low noise & high SPL handling with single wire connectivity provides the freedom to leave bulky gear at home — even in the most demanding environments.
Critical Recording Flexibility
Spatial Mic transforms audio capture in the recording studio with unmatched control, versatility, quality and unique connectivity options to compliment your setup.
Broadcast & Live Concerts
Capture or live stream mono, stereo or multichannel audio feeds for sporting events, concerts, television, YouTube 360, Facebook 360 and more.
Expand Your Vision

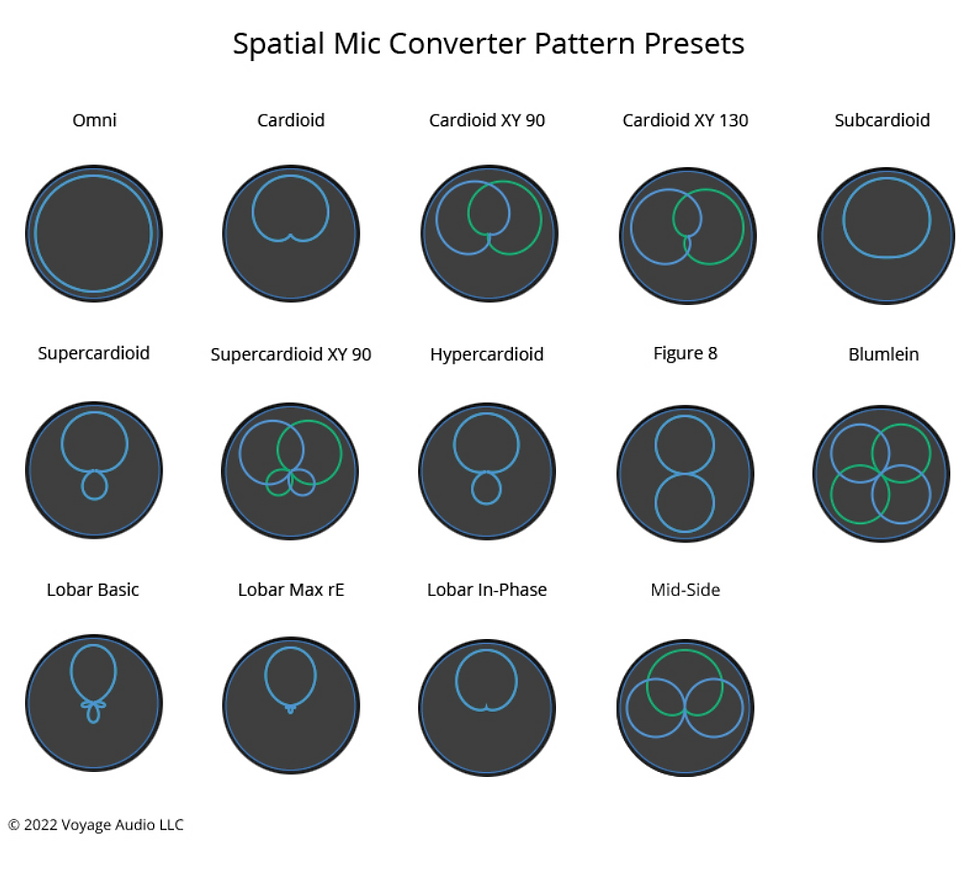

Open new markets for your business and deliver content to Dolby Atmos, ambisonics or explore the sound field in mono, stereo X/Y, Blumlein or any format you would normally use for your production.
Test & Measurement
Use Spatial Mic to record & playback Impulse Responses in an acoustic space, view hotspots and sound reflections or explore new ways to interact with sound.
Designed For Innovative Recording
Spatial Mic is crafted to bring your recordings to life in the most realistic way possible. More than simply a microphone – analog and digital electronics work together with software components to create incredibly engaging audio.
8 Capsule Spatial Audio Capture
High spatial resolution made possible with 8 analog capsules for 2nd Order Ambisonics.
High Performance Audio Design
Professional grade analog to digital conversion, high resolution Skyworks clocking scheme and built-in 32-bit XMOS Processor.
Individual Calibration
Each microphone is individually calibrated prior to shipping for quick recording with a balanced array.
Plugins & Software Downloads: https://voyage.audio/downloads
Product Link: https://voyage.audio/spatialmic
Video Link: Spatial Mic Dante: Setup For Optimal Audio
Voyage Audio Spatial Mic (DANTE)
- Up to 8 channels streaming over standard IP network
- Output mode streaming over network: Unprocessed ( 8 channels), 5.1 surround (6 channels), 5.1.2 surround (8 channels), 7.1 surround (8 channels), virtual mic pattern decode (2 channels).
- NE8FBH-C5 locking etherCON compatible, also compatible with standard RJ45 connectors
- Digital performance over Dante network: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz (-4% / -0.1% / +0.1% / +4.167%) up to 32-bit
- AES67 mode at 48 kHz / 32-bit
- DSP: 32-bit XMOS with 16 real-time logical cores
- DSP Modes: Unprocessed up to 192 kHz, all other decoding modes up to 48 kHz
- Clock source: internal or from Dante network primary
- ADC: 114-dB per channel at 24-bits
- Power: 48V PoE complies with IEEE 802.3af PoE Class 0 power sourcing equipment that uses Alternative A or Alternative B options
- Power consumption: 4.8W max
- Thermal: Operates at up to an ambient temperature of 45 degrees Celcius
- Spatial Mic Converter plugin DSP filter type: 64-element output filter matrix
- Individual calibration stored in each Mic for balanced array
- 14mm Prepolarized Condenser
- SNR: 78dB-A at 1 kHz
- Frequency Response: 20Hz to 20kHz
- Max SPL: 136dB @1kHz
- Array: 8 transducers1
- Construction: Aluminum & Nylon
- Spatial Mic Dante Dimensions: Height: 7.65 in (19.4cm) Diameter: 2.25 in (5.7cm)
- Weight (Mic only): 0.86lbs
- Host computer running Dante Controller for signal routing
- Host computer running MicNet Control app for device control (device can be used without MicNet Control and will recall the last saved settings upon power up)
- PoE switch or injector supporting IEEE 802.3af
- Managed Gigabit (1000 Mbps) or higher rated switches recommended
